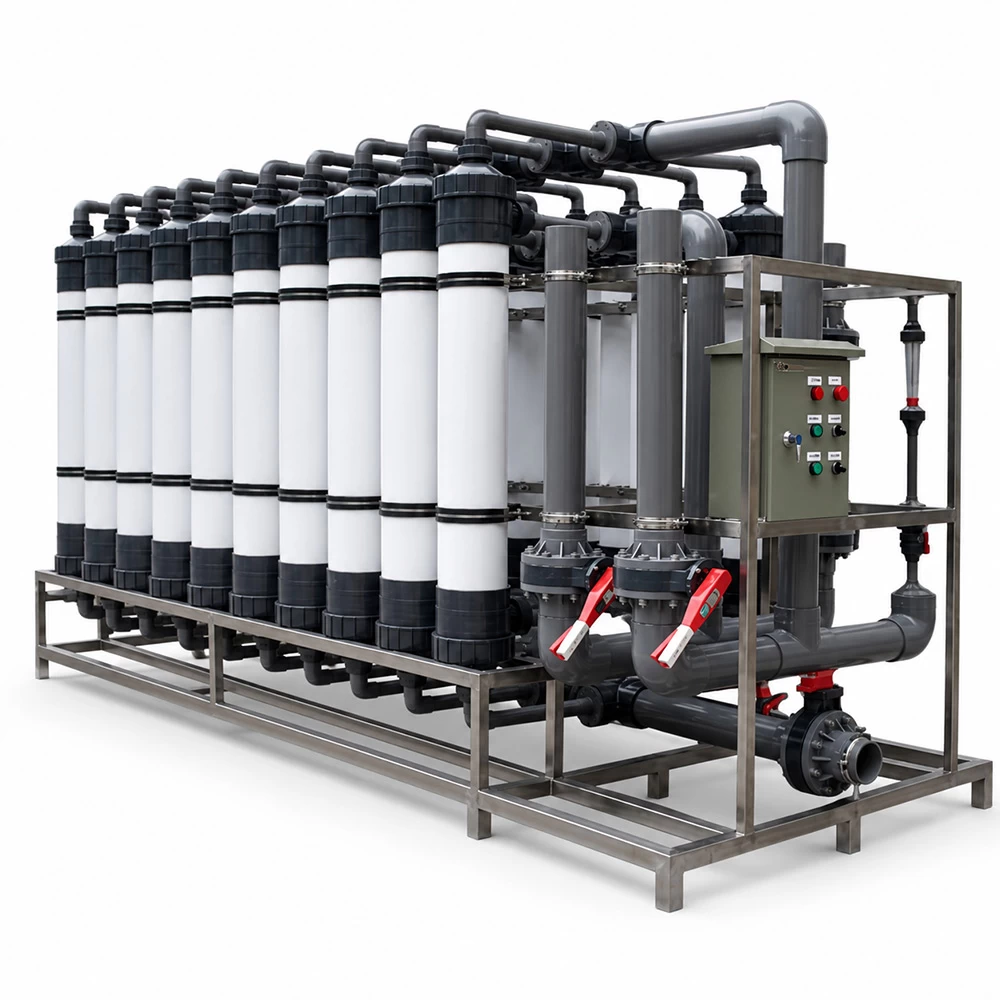

Ultrafiltration water purification equipment
Generate QR code
-
Estimated Delivery:Jul 22 - Jul 26
Product description
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
Customized Industrial Water Treatment System
Industrial Water Purification
Industrial RO
Water Treatment System
The industrial reverse osmosis water treatment system is designed to remove dissolved salts, suspended solids, organic matter, microorganisms and other impurities from raw water. The equipment can be customized according to water quality, processing capacity, application and output-water requirements.
Customized Treatment Capacity
Automatic PLC Control
High Desalination Performance
Stable Continuous Operation
0.5–100 T/H
Custom Capacity Range
RO / UF / EDI
Optional Process
Automatic
Control Mode
Complete process configuration can be adjusted according to raw-water quality and required output standards.
Product Overview
Efficient and Stable Water Purification
The system combines pretreatment, precision filtration, reverse osmosis membrane separation, sterilization and optional polishing processes. It is suitable for producing purified water for industrial processing, food production, pharmaceuticals, electronics, laboratories and boiler systems.
Based on the customer’s raw-water report, Foshan Mingtao Environmental Protection Equipment Co., Ltd. can configure multimedia filters, activated carbon filters, softeners, ultrafiltration, two-stage RO, EDI, UV sterilization and ozone systems.
Modular equipment structure
Low operating and maintenance cost
Easy membrane and filter replacement
Real-time pressure and flow monitoring
Automatic flushing and protection
Stainless steel or FRP configuration
Product Advantages
Why Choose Our RO Water Treatment System
The system is designed for reliable purification performance, convenient maintenance and flexible configuration under different industrial conditions.
High Desalination Rate
High-quality RO membrane elements remove dissolved salts, heavy metals, organic matter and microorganisms from raw water.
Flexible Configuration
Pretreatment, membrane stages, sterilization systems and polishing equipment can be selected according to project requirements.
Automatic Control
PLC and touch-screen control options support automatic operation, flushing, alarm monitoring and equipment protection.
Multiple Protection
Low-pressure, high-pressure, water-shortage and electrical protection help ensure stable operation and component safety.
Easy Maintenance
The modular layout provides convenient access to filters, pumps, instruments, valves, membranes and electrical components.
Energy-Saving Operation
Efficient pumps, optimized piping and appropriate recovery-rate design help reduce energy use and wastewater discharge.
Treatment Process
Typical Water Treatment Process
The following process is a reference configuration. Each treatment stage can be adjusted according to the customer’s water-quality report.
STEP 01
Raw Water Tank
STEP 02
Multimedia Filtration
STEP 03
Activated Carbon
STEP 04
Precision Filter
STEP 05
RO Membrane System
STEP 06
Product Water Tank
Technical Data
Reference Technical Parameters
Final specifications depend on raw-water quality, treatment capacity, membrane configuration and required output-water standard.
Parameter
Reference Specification
Product Name
Industrial RO Water Treatment System
Treatment Capacity
0.5–100 T/H or customized
Raw-Water Source
Tap water, groundwater, surface water or pretreated industrial water
RO Configuration
Single-stage RO, two-stage RO or RO + EDI
Desalination Rate
Typically up to 97%–99%, depending on design
Recovery Rate
Designed according to feed-water quality and membrane configuration
Control Method
Manual, semi-automatic or PLC automatic control
Frame Material
Stainless steel, carbon steel or customized
Pipeline Material
UPVC, stainless steel or customized engineering material
Electrical Supply
Customized according to destination-country voltage
Optional Equipment
UF, softener, dosing system, UV, ozone, EDI and polishing filter
Application
Industrial process water, food, medical, electronics, boiler and laboratory use
Custom Configuration Available
To recommend a suitable system, please provide the following project information.
Raw-water source and analysis report
Required hourly or daily capacity
Target output-water quality
Operating time and installation space
Local electrical voltage and frequency
All parameters shown on this page are reference values. The final design is determined by the confirmed project conditions.
Core Components
Main System Configuration
Components can be selected according to treatment capacity, operating conditions, automation requirements and customer budget.
Pretreatment Filters
Multimedia, activated carbon, softening and precision filtration systems protect the RO membrane.
High-Pressure Pump
The high-pressure pump provides stable operating pressure for the membrane separation system.
RO Membrane Elements
Membrane elements remove salts, organic matter, colloids, microorganisms and other dissolved impurities.
Instruments & Sensors
Pressure, flow, conductivity and water-level instruments provide real-time system monitoring.
Chemical Dosing System
Optional antiscalant, pH adjustment, disinfectant and reducing-agent dosing systems are available.
Electrical Control
PLC, touch screen, electrical protection and alarm functions support safe automatic operation.
Pipeline & Valves
UPVC or stainless-steel pipelines and valves are configured according to pressure and water-quality requirements.
Equipment Frame
Integrated skid-mounted frames simplify transportation, installation, maintenance and project management.
Applications
Water Treatment for Multiple Industries
The equipment can be configured for purified water, high-purity water, process water, boiler feed water and production-line cleaning.
Pharmaceutical & Medical
Purified-water and high-purity-water preparation for medical production and laboratory applications.
Electronics & Precision Cleaning
RO, two-stage RO and EDI systems for electronic production and precision component cleaning.
Food & Beverage
Process-water preparation for beverages, food processing, bottled water and production-line cleaning.
Chemical & Manufacturing
Stable industrial process water for chemical, coating, manufacturing and material-production facilities.
Power & Boiler Feed Water
Softening, RO and ultrapure-water systems for boilers, energy facilities and circulating-water systems.
Commercial & Municipal
Purified-water systems for schools, hotels, communities, commercial buildings and public facilities.
Customization Process
From Water Analysis to System Delivery
Mingtao provides a clear equipment customization workflow for industrial and commercial water treatment projects.
01
Requirement Confirmation
Confirm the water source, project application, capacity, operating time and output-water requirements.
02
Water Quality Evaluation
Analyze hardness, conductivity, salinity, turbidity, organic matter and other important parameters.
03
Technical Design
Determine the treatment process, component brands, control method, material and equipment layout.
04
Manufacturing & Testing
Complete frame fabrication, piping, electrical installation, equipment assembly and factory inspection.
05
Delivery & Support
Provide packaging, shipment, installation guidance, commissioning support and operating instructions.
QUALITY CONTROL
Inspection before packaging and delivery
Quality Assurance
Inspection Throughout Equipment Production
We focus on component matching, pipeline reliability, electrical control and stable system operation before equipment delivery.
Component Inspection
Pumps, membranes, instruments, valves, electrical parts and filter components are checked before assembly.
Pipeline & Pressure Check
Pipeline connections, valves and pressure-bearing components are inspected for reliable operation.
Electrical Function Testing
Control logic, sensors, protection functions, alarms and automatic operating programs are verified.
Final Appearance & Packaging
Equipment appearance, labels, accessories and packing lists are checked before protective packaging.
Discover more in our FAQ
Q1: What products does Foshan Mingtao Environmental Protection Equipment Co., Ltd. provide?
A: We provide reverse osmosis water treatment systems, ultrapure water equipment, ultrafiltration systems, ion exchange equipment, integrated sewage treatment systems, industrial wastewater treatment equipment, water reuse systems, membrane elements and related accessories.
Q2: Can you customize water treatment equipment for different projects?
A: Yes. We can customize the treatment process, capacity, equipment materials, control system, piping layout and component configuration according to the customer’s water quality and project requirements.
Q3: What information is required before recommending a suitable system?
A: Please provide the raw-water source, water-quality analysis report, required treatment capacity, operating hours, target output-water quality, discharge standard and application.
Q4: Which industries can use your water treatment systems?
A: Our systems are suitable for electronics, pharmaceuticals, laboratories, food and beverage, chemical processing, power generation, boiler feed water, manufacturing, commercial buildings and municipal projects.
